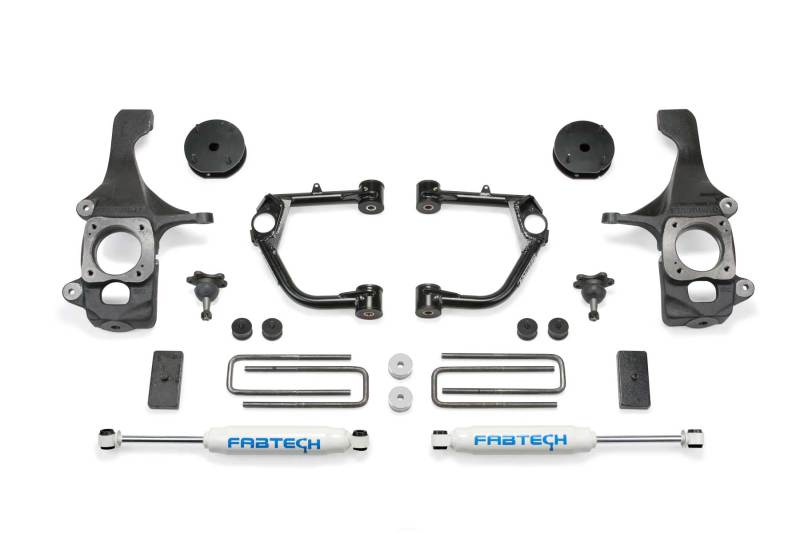

Fabtech 07-15 Toyota Tundra 2WD/4WD 4in Budget UCA System w/Rear Perf. Shocks

This new 4 System capitalizes on Toyota Tundras large wheelwell opening to allow use of 35 tall tires with minimum lift height. The design of this 4 System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control with a .120 wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35 tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1 lift block and u-bolt system to level the stance of the vehicle. The 4 System is available with a spacer system to retain the factory Coilover shocks and rear Performance shocks.
4in. UCA KIT W/BJS/PERF SHKS 07-15 TOYOTA TUNDRA 2WD/4WD
TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/65R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 69. DOUBLE CAB & CREWMAX 5.7L W/ AUTO TRANS ONLY.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 135. FITS TRD MODELS EXCEPT TRD PRO ; 168. WILL NOT FIT TRD PRO MODELS

Fitment:
Toyota Tundra 1794 Edition 2014 to 2015
Toyota Tundra Base 2007 to 2013
Toyota Tundra Limited 2007 to 2015
Toyota Tundra Platinum 2013 to 2015
Toyota Tundra SR 2014 to 2015
Toyota Tundra SR5 2007 to 2011
Toyota Tundra SR5 2014 to 2015
